AREAS WE ADDRESS
Fuel tables are modified for either better economy or all-out performance. Depending on your needs is how most tables are set up. We have noticed on the 2021-2023 F150 5.0L that the fueling tables are a little rich in their strategies in stock condition and have moderate delay timers set before allowing additional fuel at WOT. However, some fueling delays are ok as they help with economy
The F150 5.0L V8 suffers from poor throttle response down low. A custom calibration will have enhanced improvements in better throttle response, step on go pedal, the vehicle will respond quicker…this DBW system is a torque driven system, it works by taking a certain amount of torque via engine and wheel and applies it to what the driver’s foot says it needs; a better way to explain it is a torque limiter. It only allows so much torque at a given pedal position. Stock tables are conservative and numb at best and that’s why one would feel sometimes a lag or a goofy pedal with DBW systems. For a 5.0L V8, this is one of the most critical areas that must be addressed and modified to generate more torque /hp and throttle response. By reworking the OEM strategies makes your 5.0L V8 come to life!a given pedal position. Stock tables are conservative and numb at best and that’s why one would feel sometimes a lag or a goofy pedal with DBW systems. For a 5.0L V8 this is one of the most critical areas that must be addressed and modified to generate more torque /hp and throttle response. By reworking the OEM strategies makes your 5.0L V8 come to life!
There are normally 3 types of limiters on most vehicles that can be adjusted safely and the F150 5.0L V8 is no different. RPM, MPH (105) and transmission. MPH limiter is raised to 200 MPH. Output shaft limiters are slightly increased to a safe limit in our calibrations. We also leave the Fail Safe factory limiters enabled and in place that Ford has set from the factory. So in all temperature conditions if your vehicle needs to dial back some power on its own it can. This ensures a safe calibration for the life of your vehicle.
Can be increased in most RPM areas for improved Torque and HP. Running a higher Octane fuel will net more power and economy from some timing/spark advancement. However, with a 5.0L v8 even running 87 Octane fuel can yield some respectable gains in power and torque over stock with the use of no additional timing advance (aka factory tables). The knock sensors and strategy we leave in place just like factory on the 5.0L v8 are very good in that they can advance and retard timing while you drive. For best-delivered timing to achieve best power and torque a good quality fuel is needed like 91/93 octane.
The 10-speed transmission that comes standard with the F150 5.0L V8 is a big improvement in driver controls over prior 6 speed transmissions. However, there are still some significant benefits to be had re-calibrating normal daily shift strategies. Daily Mode: We have noticed that while in normal everyday mode that the transmission will move into 8th,9th, 10th gears really quickly around town with speeds as low as 42 mph this really lugs the engine and when trying to accelerate there is a pretty good delay to build boost and either downshift or accelerate. Also, Ford is skip shifting in normal mode as well. We can correct this by moving some shift strategies patterns around in all gears. Our calibrations will have an emphasis on shifting at the right mph and rpm as to take advantage of the low torque that is available from the 5.0L V8 engine while maintaining great fuel economy and power to accelerate when needed. Tow/Haul Mode: Coasting or slowing down the downshifts don’t command soon enough to keep the RPM’s up in torque range and when back in throttle multiple downshifts may occur. Also, keep in mind engine braking; a V8 engine has less braking that Ford’s past V8 engines larger displacement, so a quick downshift for braking is required for owners that are going to tow heavy. We have re-calibrated tow/haul mode strategies that enhance keeping the engine RPM’s elevated to take advantage of the torque band which will require less downshifting by optimizing gears. We have also enhanced the downshift patterns to allow better engine braking with this V6 engine. All of our calibrations have this new tow/haul strategy except economy mode calibrations. Sport Mode: is a fun mode in factory form but does not have much use in a daily drive except wide open throttle. We have an enhance shift pattern that allows you to take advantage of this sport mode to make use of it during your daily drive when you want both sport and fun with keeping some of your drivability in mind. Upper gears 8th, 9th, 10th are much more driver-friendly after tuning being able to get into these gears at an except-able MPH is key. Economy Mode: The throttle is desensitized and the shift pattern is reduced with locking the converter up in most all gears and keeping it locked as long as possible to get the most efficiency from your vehicle. All of our Perf/Tow tunes/maps will have this eco mode and should use when wanting the best fuel efficiency. Snow/Wet Mode: The throttle is desensitized and the shift pattern is reduced with emphasis on maintaining traction in snowy or wet conditions. Shift Pressures/Slip Timers: Shift pressures can be increased and slip timers can be decreased to help keep trans temperatures down and give the truck or any vehicle a better overall feel. In an F150 5.0L V8 the shifts are quick and slightly firmer most of the delay between shifts are eliminated when using custom tunes.
Shift pressures can be increased and slip timers can be decreased to help keep trans temperatures down and give the truck or any vehicle a better overall feel. In an F150 5.0L V8 the shifts are quick and slightly firmer most of the delay between shifts are eliminated when using custom tunes.
Where do I find my ECU Strategy Code?At the time of your order if your ECU strategy code is known, we will send your tuner loaded with tunes on your selected tuner. If this information is not known at the time your order is placed, you will be provided a blank tuner to acquire the needed vehicle information.If using an SCT or Bully Dog Device: On your device under vehicle information, you will find your ECU Strategy Code. An example of an ECU Strategy Code for 1996-2014 models is PKRK0R2.Note: If your vehicle is a 2015+ we will also need your ECU SWPN (HL3A-14C204-BPH). For diesel applications we will also need your TCU Strategy (TPCL0HH) and TCU SWPN (HL3A-14C337-HH) in addition to your ECU Strategy and ECU SWPN.If using an HP nGauge Device: The nGauge will not need a strategy code at the time of order, however, when you receive your nGauge device you will do a “Stock Read of Your Vehicles PCM & TCM with the device and simply email that stock file back to us. At this point, the custom tuning/mapping can be completed.
Custom calibrations allow for many choices when it comes to tuning your vehicle. 5 Star Tuning will be offering these popular choices for the new F150 5.0L V8. These enhanced calibrations can increase economy and are completely safe to tow/haul your vehicles manufactured recommend weight rating in any mode.Enhanced Safe Power – Great Drive Ability – Good Economy is our goals with all of our custom maps. Calibrations will enhance some if not all of these areas depending on Map/Tune developed.● Fuel● Boost (if equipped)● Drive by wire● Grill shutters● Cold/hot start idle● Idle drive● Variable cam● Shifting sport mode● Converter sport mode● Shifting normal mode● Converter normal mode● Shifting Tow/Haul mode● Converter Tow/Haul mode● Timing● Cruise/speed control● Variable speed fan● Speed limiters● Tire size (HP MPVI only)● Axle ratio (HP MPVI only)Calibrations that are available for the F150 5.0L V8 are:87 Performance/Tow89 Performance/Tow91 Performance/Tow93 Performance/Towe85 Performance/Tow87 Performance Only (New for 2018 & Newer Models!)89 Performance Only (New for 2018 & Newer Models!)91 Performance Only93 Performance Onlye85 Performance Only
Fords new Auto Start/Stop now across all F150 motors can be Disabled OR Enabled in all of our custom tunes based on your request.
VIDEOS
VEHICLE WEIGHT

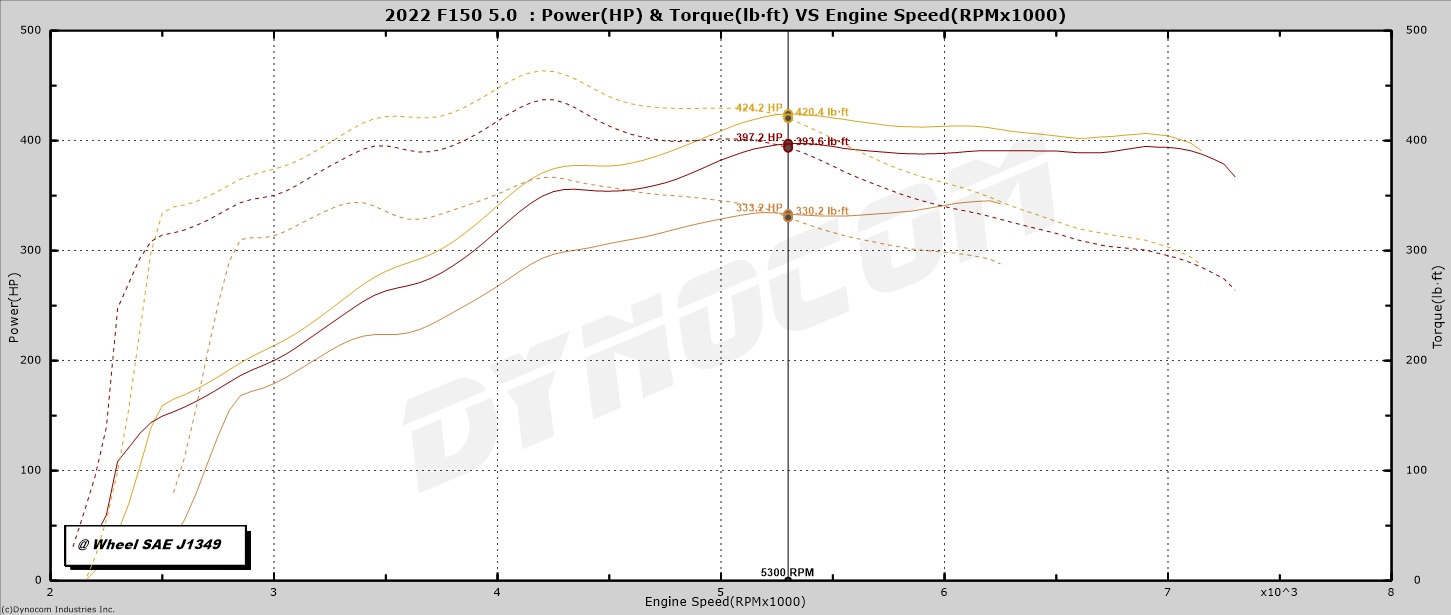

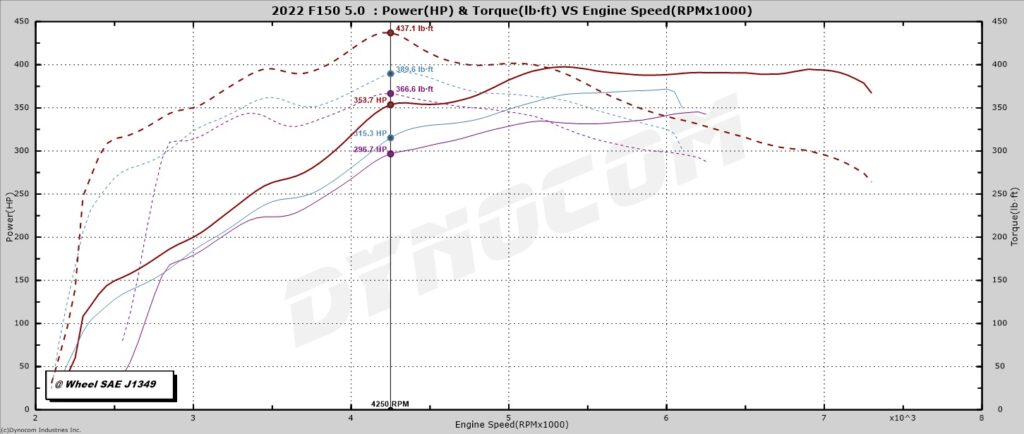

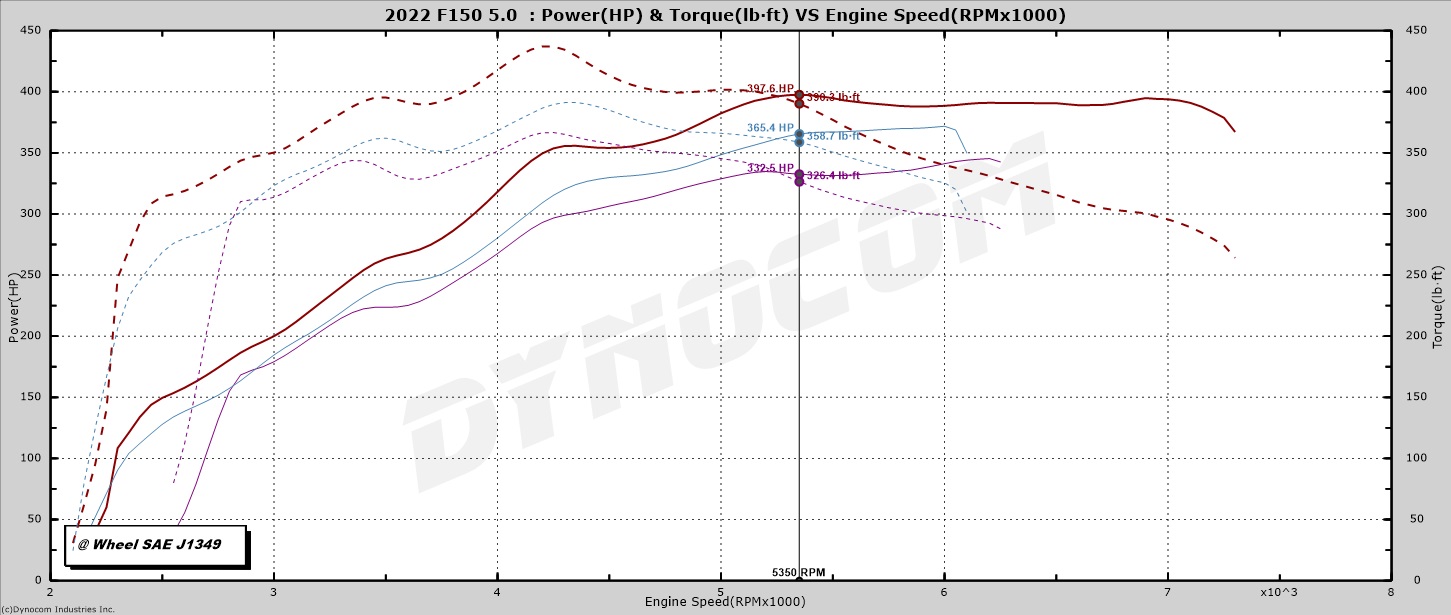

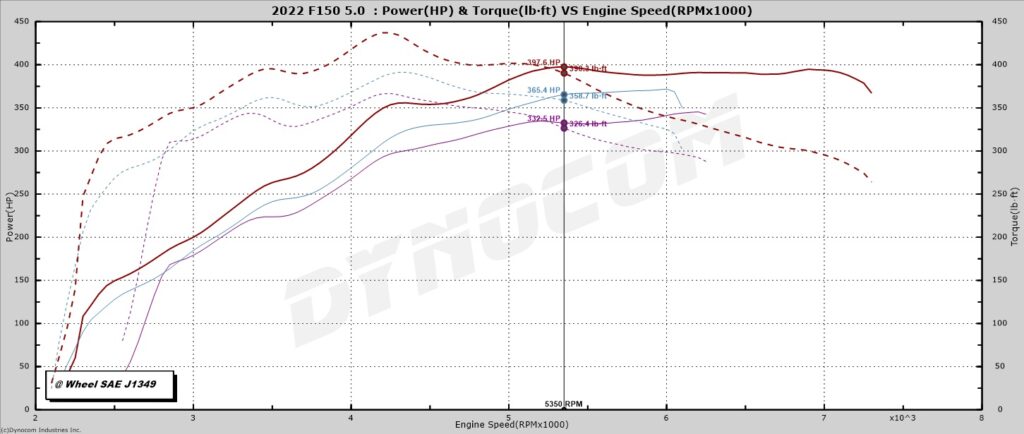

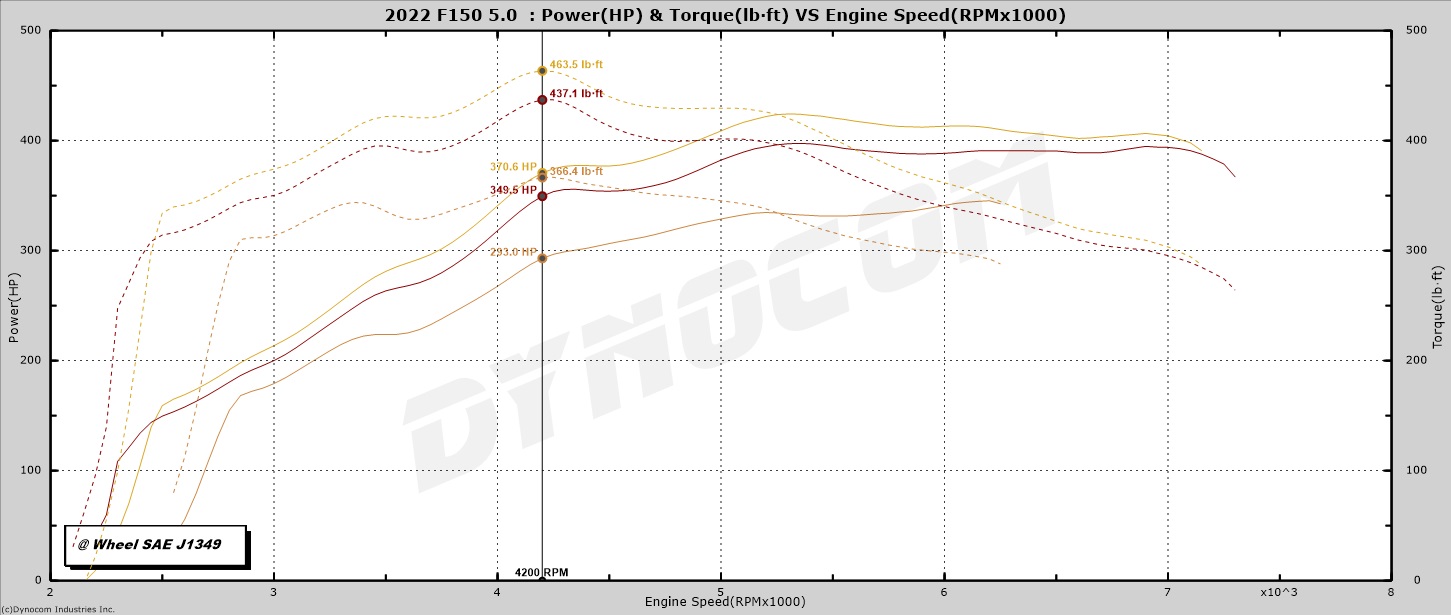

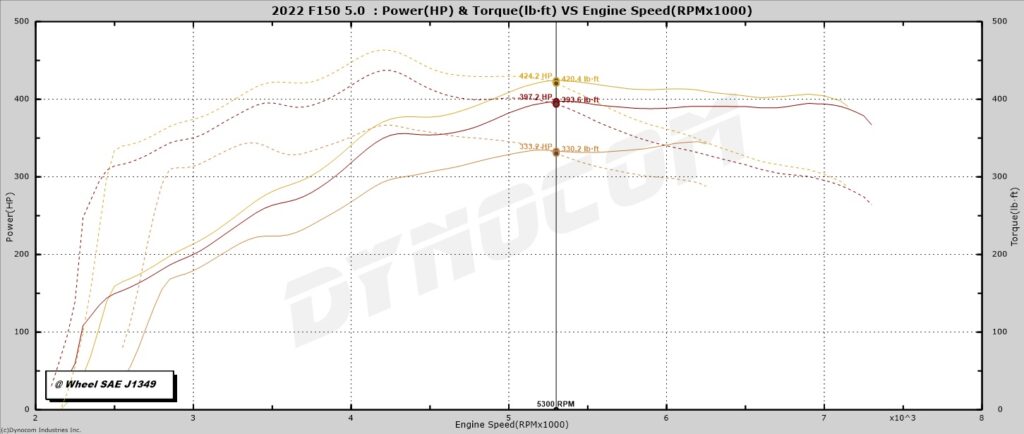

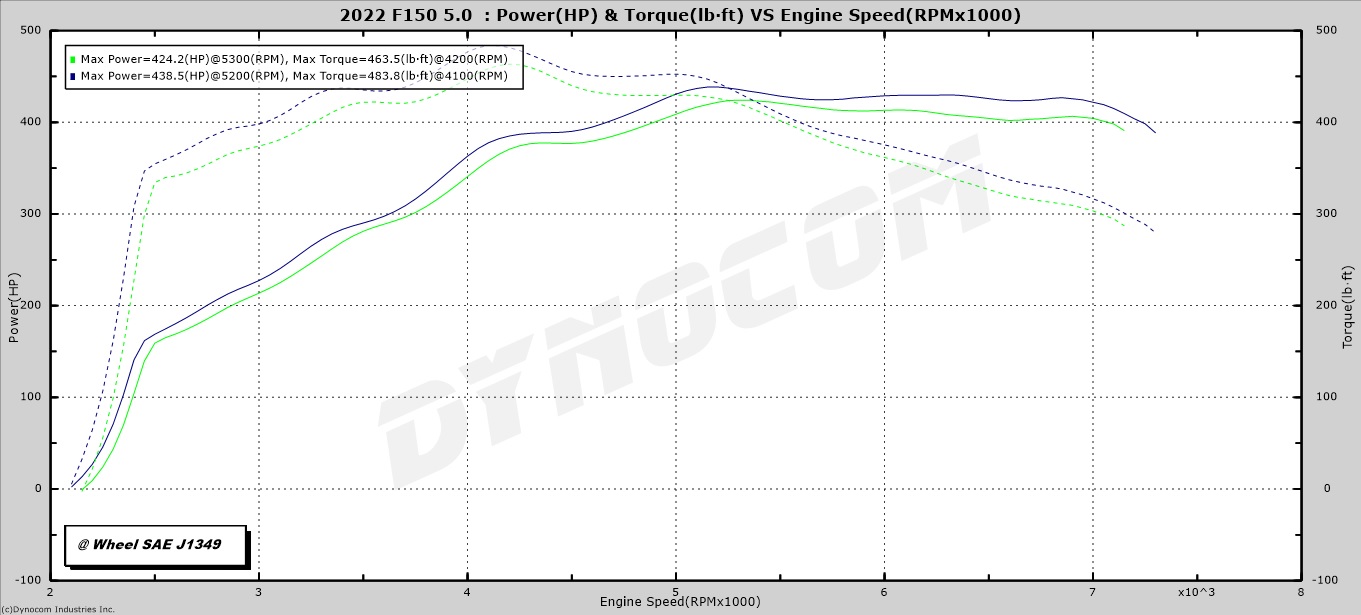

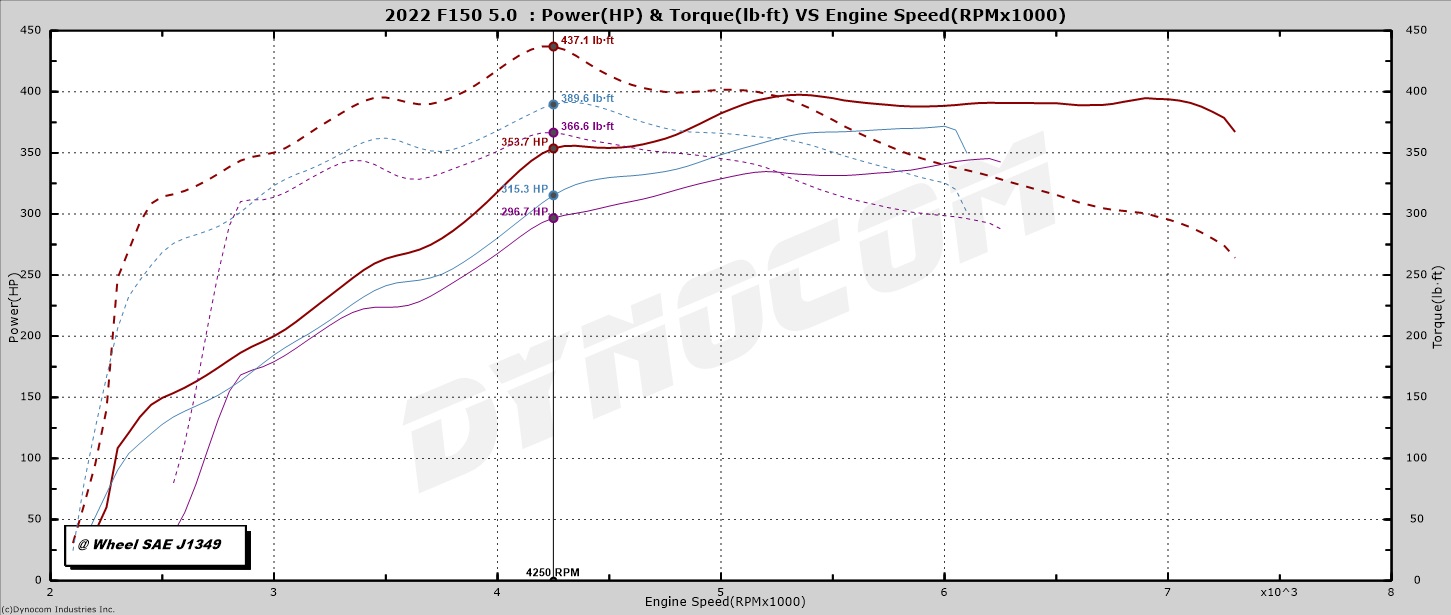

DYNO GRAPHS
